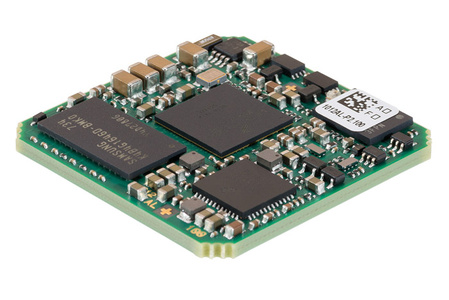

Embedded module TQMLS1012AL
Board Support Packages
Entry Page
Third-Party Add-Ons
Board Support Packages
Hardware
Onboard I2C devices

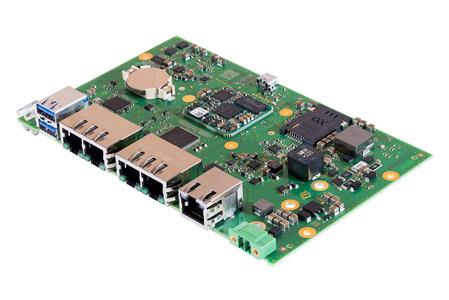

| I2C bus | TQMLS1012AL | MBLS1012AL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I2C1 | 0x8 PMIC | 0x19 Temperature Sensor | 0x31 EEPROM | 0x50 EEPROM | 0x51 EEPROM | 0x68 RTC | 0x20 GPIO Expander | 0x44 USB HUB | 0x48 Temperature Sensor | 0x5F Ethernet Switch | 0x69 PCIe Clock Generator | 0x70 GPIO Expander (1,8V) |
Hardware Issues
Linux BSP
U-Boot
Supported features
| Feature | BSP Revision | Remarks | |||
|---|---|---|---|---|---|
| TQ Product | Chip | Interface | Function | ||
| TQMLS1012AL | LS1012A | Ethernet GbE | SGMII | • | |
| TQMLS1012AL | LS1012A | 4x Ethernet-Switch GbE | RGMII | • | |
| TQMLS1012AL | LS1012A | UART1 | Debug-UART | • | |
| TQMLS1012AL | LS1012A | SDHC1 | SD-Card | • | |
| TQMLS1012AL | LS1012A | I2C1 | Bus Access | • | |
| TQMLS1012AL | LS1012A | USB1 | USB3.0 Host | • | |
| TQMLS1012AL | LS1012A | QSPI | QSPI NOR Flash | • | |
| TQMLS1012AL | LS1012A | Watchdog | • | ||
Supported boot devices
Kernel
Operating System
Supported Features
| Feature | BSP Revision | Remarks | |||
|---|---|---|---|---|---|
| TQ Product | Chip | Interface | Function | 0003 | |
| TQMLS1012AL | LS1012A | SGMII | Ethernet GbE | • | |
| LS1012A | RGMII | 4x Ethernet-Switch GbE | • | ||
| LS1012A | UART1 | Debug UART | • | ||
| LS1012A | eSDHC1 | Mirco SD Card | • | ||
| LS1012A | I2C1 | Bus Access | • | see onboard I2C devices | |
| LS1012A | PCIe | Mini-PCIe | • | ||
| LS1012A | SATA | M.2-SATA | • | ||
| LS1012A | USB1 | USB 3.0 Host | • | ||
| LS1012A | GPIO | GPIO | • | ||
| LS1012A | Watchdog | • | |||
FAQ
PTXdist
BSP Version Matrix
Version Matrix
| BSP Revision | 0003 |
|---|---|
| ci-meta-tq release | https://github.com/tq-systems/ci-meta-tq/releases/tag/sumo.TQMLS1012AL.BSP.SW.0003 |
| Yocto Project / Poky Release | 2.5 - Sumo |
| Target machine1) | tqmls1012al-mbls1012al |
| U-Boot | 2017.11 - LSDK-18.03 |
| Linux Kernel | 4.14 - LSDK-18.03 |
Changelog PTXdist
