TQMa8MPxL - YOCTO Linux BSP documentation

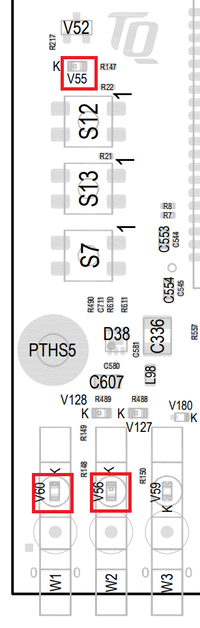

The MBa8MPxL has three user-controllable LEDs, the behavior of these LEDs can be selected by several triggers.

The user LEDs are located in /sys/devices/platform/gpio-leds/leds/.
To change the behaviour of a specific LED, the value in the file trigger must be overwritten.

The following values are valid:

For example set the trigger of led2 to heartbeat

echo heartbeat > /sys/class/leds/led2/trigger
